Door panel reinforcing gantry spot welding machine

Welding machine features

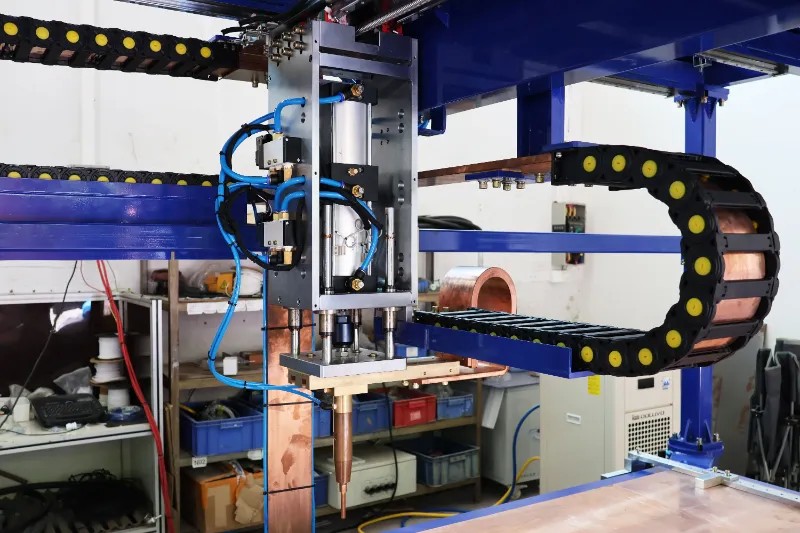

1. XY dual-axis moving welding head

The XY dual-axis moving welding head is a major highlight of this equipment.

The welding head can move freely within a plane according to a preset program, automatically completing point-by-point welding of the door panel reinforcing ribs. Not only is it extremely convenient to operate, greatly reducing the workload of operators, but it also produces uniform and aesthetically pleasing weld points, effectively improving the product's appearance quality.

Compared to traditional manual welding, its welding efficiency has achieved a qualitative leap, and more weld points can be completed per unit time, thereby significantly improving enterprise production efficiency, helping enterprises to respond quickly to market demands, and seize market opportunities.

2. Compatible with a variety of materials and thicknesses

With a rated capacity of 240kVA and a maximum short-circuit current of 25kA, the equipment provides a powerful power source, easily handling various high-intensity welding tasks. Whether it is thick iron plate or other difficult-to-weld materials, it can stably output high-quality welds and ensure that the weld strength meets the standards.

For aluminum plates, the welding capacity can reach 2.0mm+2.0mm; for carbon steel, it can reach 3.0mm+3.0mm, meeting the diverse material welding needs of the hardware and sheet metal industry. This multi-purpose machine reduces the equipment procurement costs for enterprises.

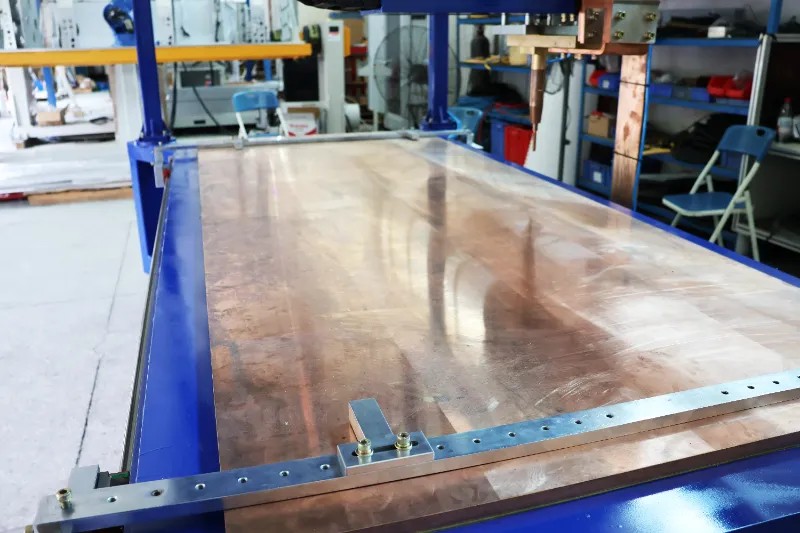

3. Gantry welding platform

The equipment adopts a gantry welding platform architecture, which gives the equipment extremely high stability.

During the welding process, even when dealing with large door panels, the welding head can be precisely positioned to achieve high-precision welding, laying a solid foundation for high-quality weld points.
